Description
30 Day Money Back Guarantee with FREE return shipping.
This is an open box item. We go through each item to ensure its unused and complete. If you are not fully satisfied with your order, please reach out to us and we will make it right.
Disclaimer: We have no affiliation with the manufacturer of this product, and although it will come with our “30 Day Money Back Guarantee with FREE return shipping”, It does not come with any additional benefit that the manufacturer offers, including, but not limited to, warranty or quality control standards set forth by the original manufacturer (we are not an authorized reseller).
About This Product

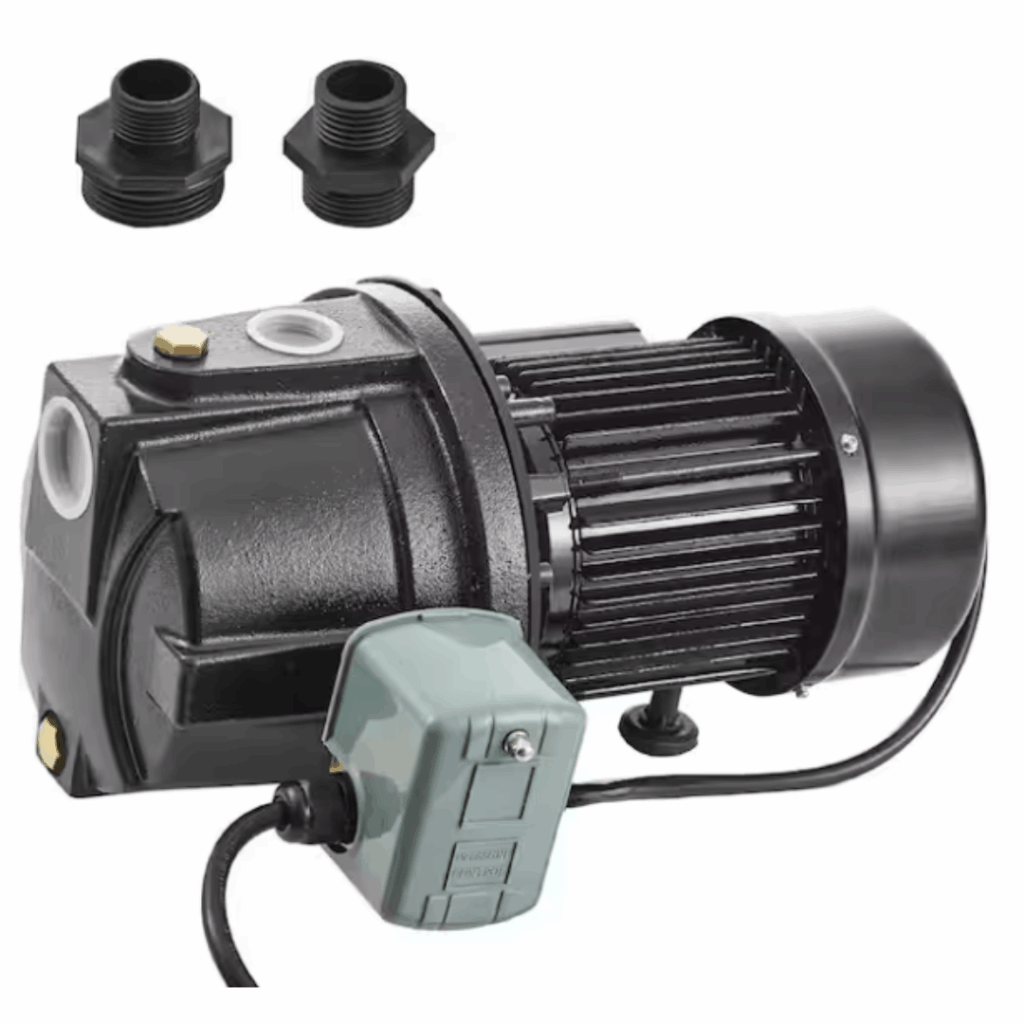

This 1 HP Cast Iron Shallow Well Jet Pump is designed to deliver powerful performance and long-lasting durability. Equipped with a robust 1 HP motor, it can pump water up to 164 feet high with an impressive flow rate of 17.6 GPM. Ideal for a variety of uses including garden irrigation, farm watering, and increasing household water pressure—reliable performance you can count on.
Highlights
Powerful Performance – Reaches up to 164 FT:
Engineered with a high-efficiency 1 HP (745.7W) motor, this shallow well jet pump provides a consistent flow of 17.6 GPM. It’s capable of lifting water up to 164 feet, making it ideal for household water supply, irrigation systems, and more.
Smart Operation with Automatic Pressure Switch:
The built-in automatic pressure switch ensures the pump starts and stops with the opening or closing of your faucet. Operating between 30–50 PSI, it protects against potential issues such as blocked pipes or low water pressure. Note: A pressure gauge can be purchased separately for more accurate monitoring.
User-Friendly Installation:
Installation is quick and easy—just match the voltage, connect to the power source, and attach the water pipes to the inlet and outlet. Before first use, fill the priming port until water exits from the drain opening, then install the air vent plug. If the pump will be idle for an extended period, be sure to drain it. Important: A foot valve must be installed at the end of the intake pipe to ensure proper automatic operation.
Durable Cast Iron Construction:
Constructed from rugged cast iron, this pump resists corrosion and wear, making it an excellent choice for outdoor and farm applications. It includes a rear ventilation port for efficient cooling and a thermal overload protector to help maintain safe, continuous performance.
Versatile Use for Homes and Farms:
Whether you’re supplying fresh water to a home, cottage, or agricultural site, this pump is up to the task. It’s also great for garden watering, washing vehicles, and boosting pressure in upper-story water systems.
Dimensions
| Product Depth (in.) | 14.4 in | Product Height (in.) | 8.3 in |
| Product Width (in.) | 11.2 in |
Details
| Amperage (A) | 6.48 A | Cord Length (ft.) | 6.6 ft |
| Discharge Flow 0 ft. @ 40 PSI (gallons/hour) | 1056 | Discharge Flow 0 ft. @ 40 PSI (gallons/min) | 18 |
| Discharge Flow 25 ft. @ 40 PSI (gallons/hour) | 1056 | Discharge Flow 25 ft. @ 40 PSI (gallons/min) | 18 |
| Features | Corrosion Resistant, Non-Clogging, Portable, Thermal Overload Protection | Gallons Per Minute (GPM) | 17.6 |
| Head Pressure (ft.) | 164 | Housing Material | Cast-Iron |
| Impeller Material | Cast Iron | Included | Hardware |
| Inlet Connection | Threaded female | Jet Pump Product Type | Shallow Well |
| Maximum Horsepower (hp) | 1 | Maximum Pressure (PSI) | 87 PSI |
| Maximum Working Temperature (F) | 95 | Minimum working temperature (F) | 32 |
| Number of Impellers | 1 | Outlet Connection | Threaded female |
| Pack Size | 1 | Power Type Required | AC |
| Product Weight (lb.) | 29.5 lb | Pump Switch Type | Electronic |
| Returnable | 30-Day | Vertical Lift (ft.) | 164 |
| Voltage | 110v |
