Description
30 Day Money Back Guarantee with FREE return shipping.
This is an open box item. We go through each item to ensure its unused and complete. If you are not fully satisfied with your order, please reach out to us and we will make it right.
Disclaimer: We have no affiliation with the manufacturer of this product, and although it will come with our “30 Day Money Back Guarantee with FREE return shipping”, It does not come with any additional benefit that the manufacturer offers, including, but not limited to, warranty or quality control standards set forth by the original manufacturer (we are not an authorized reseller).
About This Product

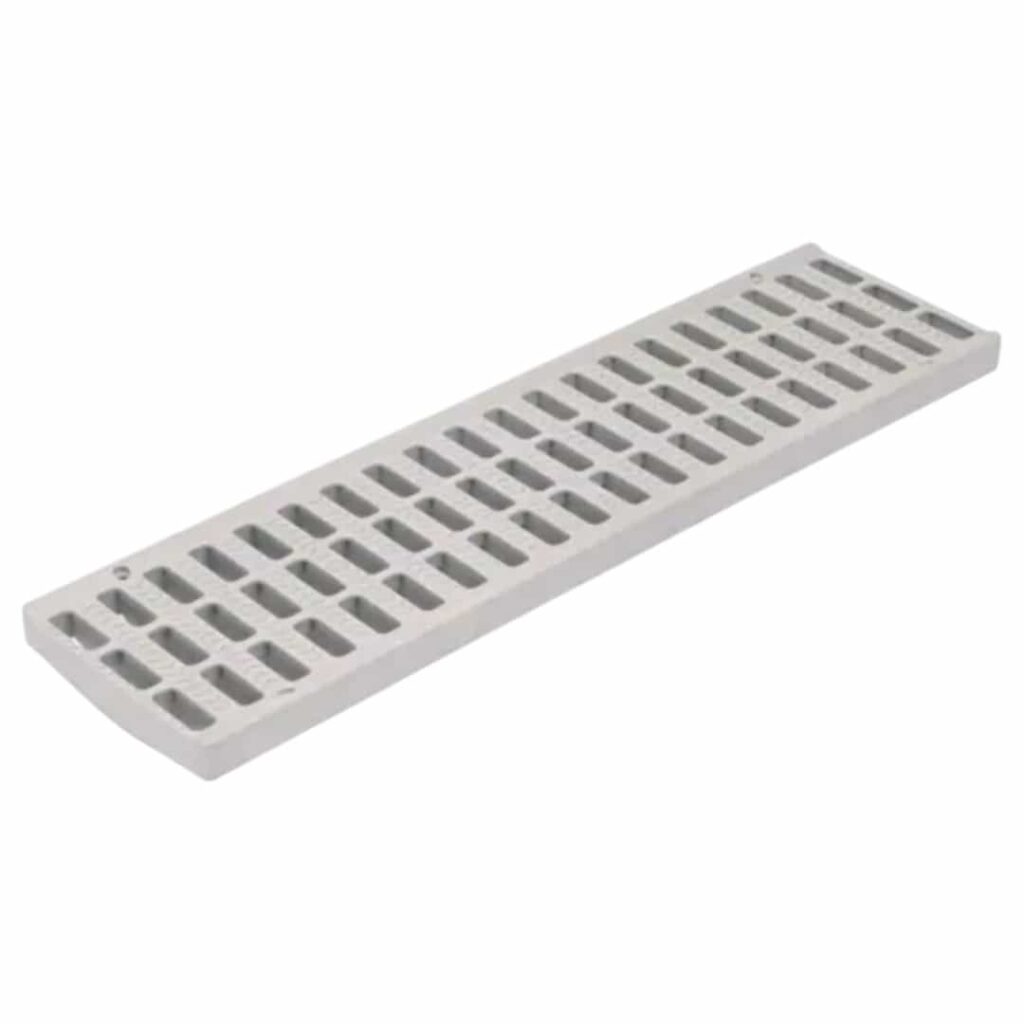

Protect your drainage system with the 5 in. Pro Series Channel Drain Grate, designed to block leaves and debris from entering and clogging drain pipes. This grate works with the 5 in. Pro Series Channel to handle moderate water flow from driveways, concrete and paver patios, courtyards, walkways, and sports facilities. It features an open surface area of 23.5 sq. in. per foot and a flow rate of 72 GPM per foot. Made of durable polyethylene treated with UV inhibitors, it resists fading and cracking. Channel drains, also known as trench drains, are long, narrow drains used for surface drainage of hardscapes, collecting water and directing it to drain pipes for proper disposal or infiltration. NDS channel drains offer a durable and effective alternative to traditional concrete drains.
Highlights
- Prevents leaves and debris from clogging the drainage system.
- Compatible with the 5 in. Pro Series Channel drain for moderate water flow management on various surfaces.
- Grate securely fastens to the channel with screws.
- Provides 23.5 sq. in. open surface area per linear foot and a flow rate of 72 GPM per foot.
- Rated for NDS class B loads (up to 175 psi), suitable for medium-duty pneumatic tire traffic, autos, and light trucks at speeds below 20 mph; ADA compliant.
- Grates can be cut to size and come in various colors and materials.
- Removable grate design allows for easy cleaning and maintenance.
- Made of high-density polyethylene (HDPE) with a blend of virgin and recycled content.
- Designed to be used with drainage emitters, dry well systems, or gravel-free French drain systems to effectively manage water discharge.
- Supports onsite stormwater management to protect downstream watersheds and reduce erosion, pollution, and flooding.
- NDS is a trusted leader in stormwater management solutions, providing reliable products and expert support.
Dimensions
| Max. Compatible Pipe Size (In.) | No Compatible Pipe Size |
| Min. Compatible Pipe Size (In.) | No Compatible Pipe Size |
| Product Depth (in.) | .75 in |
| Product Length (in.) | 19.65 in |
| Product Width (in.) | 5.25 in |
Details
| Color/Finish | Gray |
| Compatible Area of Use | Basement, Driveway, Patio, Pool Deck, Walkways |
| Material | Plastic |
| Maximum Working Temperature (F) | 140 |
| Minimum working temperature (F) | 30 |
| Pack Size | 1 |
| Pipe or Fitting Product Type | Accessory |
| Product Weight (lb.) | 1.18 lb |
| Returnable | 30-Day |
Reviews
There are no reviews yet.
