About This Product

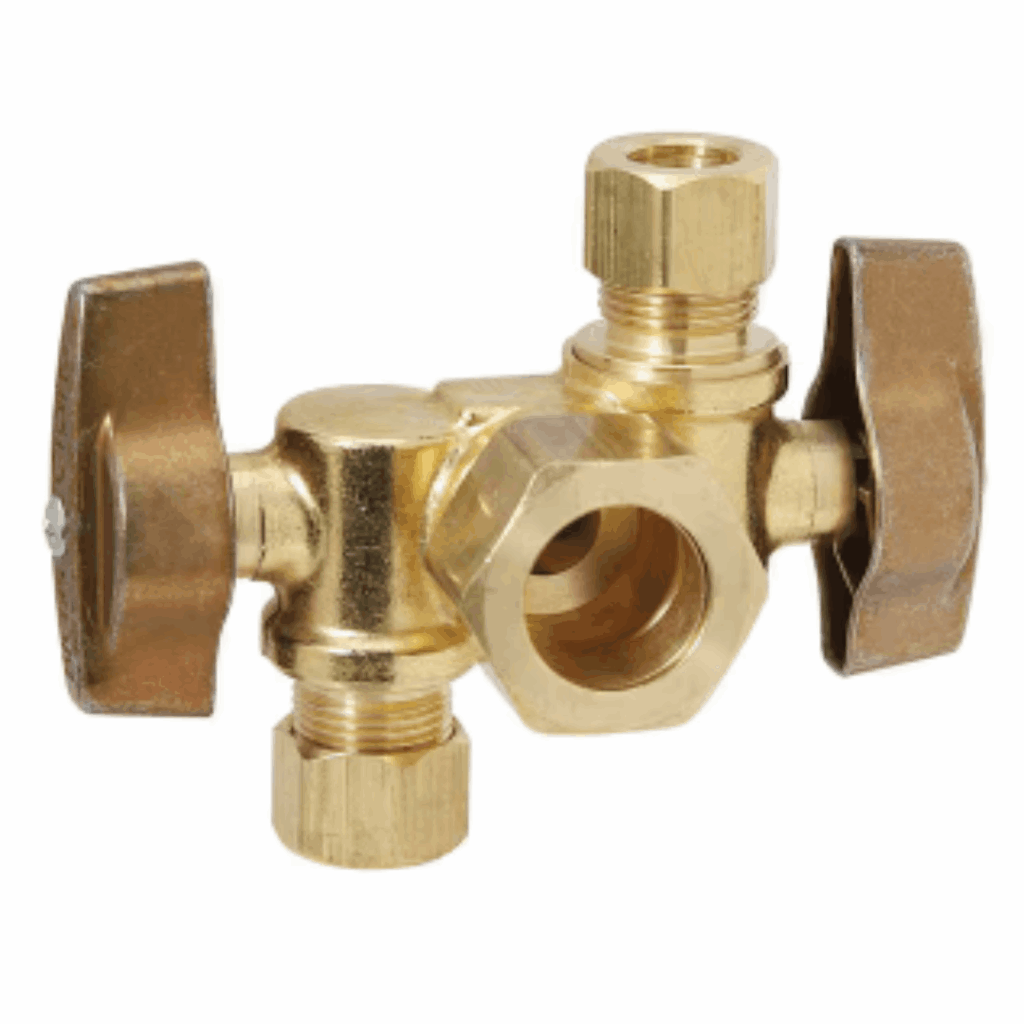

The BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. OD Compression x 3/8 in. OD Compression Dual Outlet, Dual Shut-Off 1/4-Turn Angle Ball Valve offers precise control over household plumbing fixtures. Designed for installations where water pipes enter from the wall, this valve features a dual outlet, allowing two independent supply lines to connect to a single valve. The dual shut-off feature enables you to turn off water to one source while keeping the other operational, making it ideal for adding dishwashers, ice makers, water filters, and instant hot water dispensers. With a simple 90-degree turn of the handle, you can easily control water flow for maintenance and repairs.
Highlights
- Compatible with copper and PEX (PEX requires a stainless steel tube insert).
- Provides independent flow control to multiple appliances or fixtures.
- Ideal for connecting dishwashers, ice makers, water filters, and hot water dispensers.
- Smooth quarter-turn operation for easy on/off control.
- Durable machined brass body for long-lasting performance.
- Brass ball ensures smooth function, even after prolonged periods of non-use.
- Rough brass finish.
- Easy-to-remove handle prevents accidental operation during rough-ins.
- Pressure rating: 125 psi max.
- Temperature range: 40°F to 180°F.
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1.
- No-lead certified.
Dimensions
|
Inlet Diameter (In.) |
1/2 |
Inlet Size |
1/2 In. |
|---|---|---|---|
|
Outlet 1 Diameter (In.) |
1/2 |
Outlet 2 Diameter (In.) |
3/8 |
|
Outlet Diameter (In.) |
1/2 |
Product Depth (in.) |
3.35 in |
|
Product Height (in.) |
1.55 in |
Product Length (in.) |
3.35 in |
|
Product Width (in.) |
2.35 in |
Valve Inlet Diameter (in.) |
1/2 |
Details
|
Application |
Potable Water |
Color/Finish |
Brass |
|---|---|---|---|
|
Compatible Pipe Material |
Copper |
Compatible Product |
Faucet, Ice Maker, Other, Refridgerator |
|
Connection |
Comp x Comp x Comp |
Features |
Lead Free |
|
Indoor/Outdoor |
Indoor |
Inlet Fitting End Type |
Compression |
|
Material |
Brass |
Maximum Pressure (PSI) |
125 PSI |
|
Maximum Working Temperature (F) |
180 |
Outlet Fitting End Type |
Compression |
|
Pack Size |
1 |
Product Weight (lb.) |
0.409 lb |
|
Returnable |
30-Day |
Stop Valve Type |
Angle |
|
Valve Configuration |
Angle |
Valve Connection |
Compression |
|
Valve Type |
Stop |
