About This Product

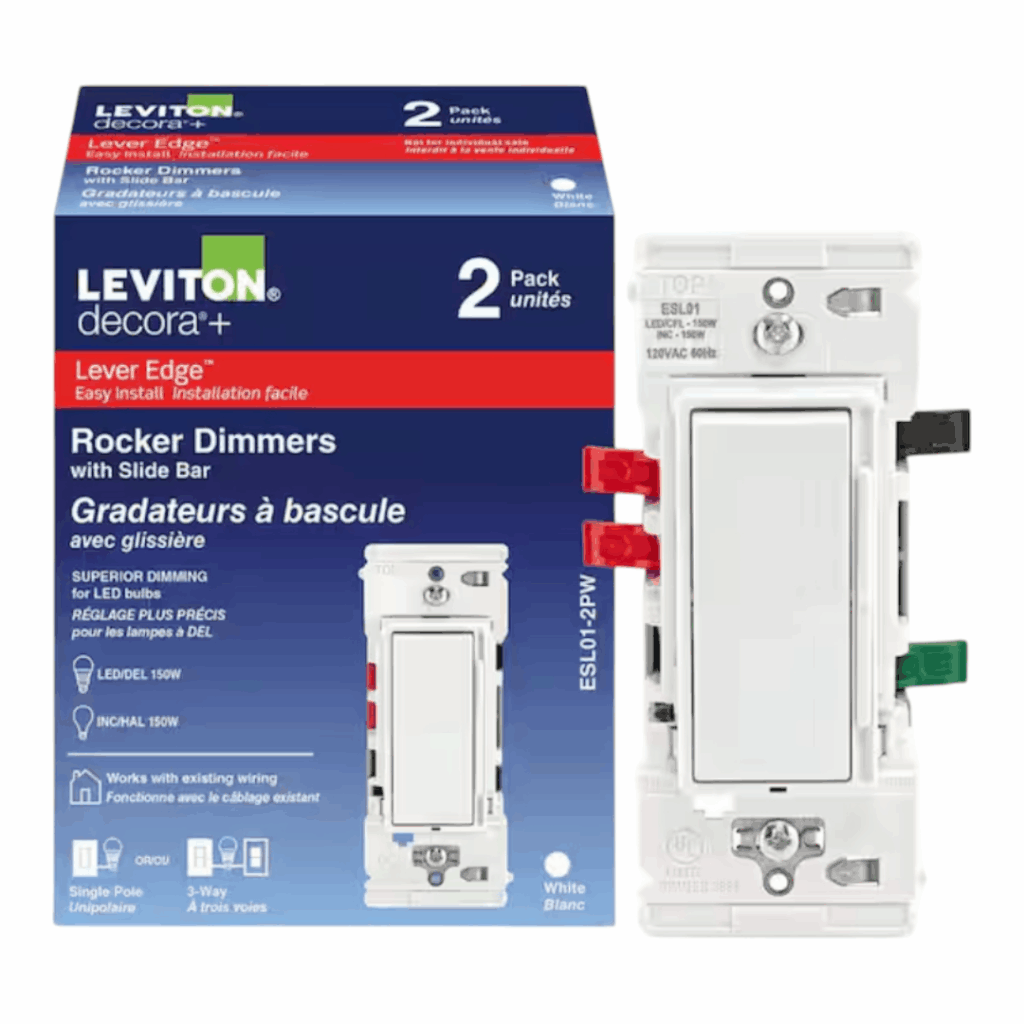

The Decora Lever Edge Rocker Slide Dimmer combines industry-leading quality, smooth dimming performance, and fast, intuitive installation, making it ideal for both DIY and professional users. Innovative features such as color-coded lever terminals for quick wiring, a larger strap with tongue-and-groove alignment for faster multi-gang trim-out, and no exposed metal parts for added safety make installation simple. The dimmer provides full-range, slide-action dimming for up to 150-Watt dimmable LED/CFL and incandescent/halogen bulbs. It can be used in single-pole (1-location) or 3-way (2-location) setups when paired with a 3-way switch, making it perfect for rooms with multiple entrances or staircases.
Highlights
- Integrated slider to brighten and dim lights, with a separate on/off Decora rocker switch to maintain the preferred light level
- Locator LED can illuminate when lights are off for easy dimmer location in the dark
- Works with existing wiring; no neutral wire required
- Setup button for customizing dimming range, enabling fade-on, and fine-tuning dimming performance
- Patented lever terminals for fast, efficient wiring; snap feature and audible “click” confirm secure connection
- Strap with tongue-and-groove alignment allows quicker trim-out in multi-gang installations
- Compatible with 12-Gauge and 14-Gauge stranded and solid copper wire
- Longer and wider strap works with midway wall plates or standard Decora wall plates (with breakaway tab removed)
- Compatible with Decora wall plates and Decora Plus screwless wall plates (sold separately)
- Faceplates available in seven colors (DSKIT) to customize dimmer appearance
Dimensions
| Product Depth (in.) | 1.34 in |
| Product Height (in.) | 4.55 in |
| Product Width (in.) | 1.80 in |
Details
| Amperage (A) | 1.25 A |
| Circuit Connection | 3-Way, Single Pole |
| Color Family | White |
| Color/Finish | White |
| Compatible Bulb Type | CFL, Halogen, Incandescent, LED |
| Control Function | Dimmer |
| Control Style | Rocker, Slide |
| Dimmable Capability | Dimmable |
| Dimmer Type | Slide |
| Features | Combo Switch |
| Finish Type | Gloss |
| Material | Thermoplastic |
| Package Quantity | 2 |
| Returnable | 30-Day |
| Voltage (V) | 120 V |
| Wall Plate Included | No Wall Plate |
| Wattage (W) | 150 W |
