About This Product

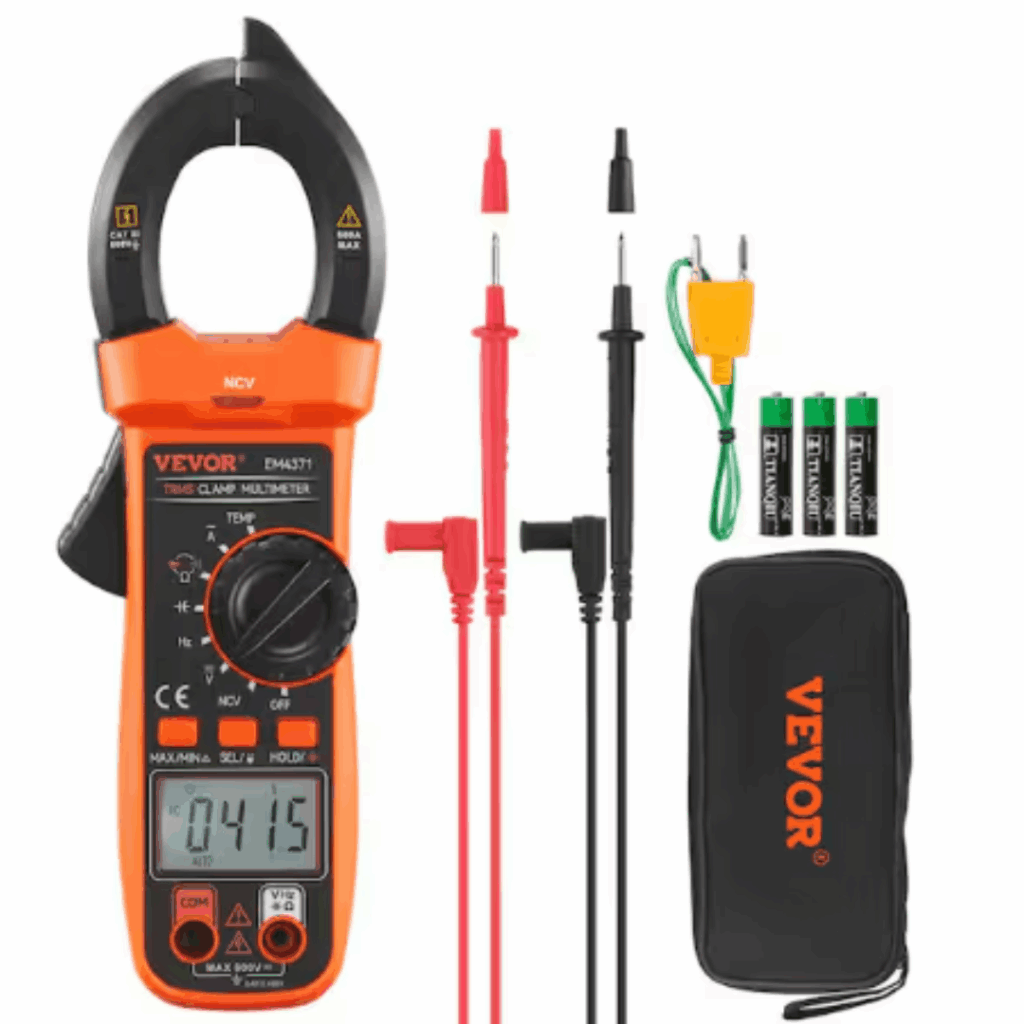

This DC/AC clamp meter is a versatile tool for measuring and testing a wide range of machines and appliances. Ideal for home appliance diagnostics, automotive service shops, power plants, and railroads, it features AC/DC voltage measurement, AC current measurement, NCV detection, and a built-in flashlight. The automatic shut-off function helps conserve energy by turning off after 15 minutes of inactivity. A bright LCD backlight screen and integrated flashlight ensure visibility in low-light environments.
Highlights
- Multifunctional Clamp Meter: Measures AC current, DC/AC voltage, frequency, and resistance with additional functions including diode testing, circuit continuity testing, data retention, capacitance, relative value measurement, and max/min value measurement.
- Non-Contact Voltage Detection (NCV): Safely detects electromagnetic fields without touching wires, providing alerts via beep signals for voltage presence.
- User-Friendly Features: Automatic sleep mode conserves energy after 15 minutes of inactivity. Bright LCD backlight and built-in flashlight enhance usability in dim environments.
- Accurate Measurement: True RMS detection ensures precise readings, with FCC and CE certifications for safety and reliability.
- Portable and Versatile: Suitable for home appliances, cars, motorcycles, RVs, laboratories, industrial maintenance, battery power testing, power plant inspections, and railroad repairs.
- Specifications:
- Max. reading: 3999
- DC Voltage: 400mV/4V/40V/400V/600V
- AC Voltage: 4V/40V/400V/600V
- AC Current: 40A/400A/600A
- Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Temperature: -4°F to 1832°F (-20°C to 1000°C)
- Frequency: 4Hz to 400kHz
- Capacitance: 4nF to 4mF
- Functions: Diode test, circuit continuity test, data retention, NCV, relative value, max/min value measurement
- Dimensions: 8.5 in. L x 2.8 in. W x 1.7 in. H
- Package Includes:
- One clamp meter
- One test stylus
- One K-type thermocouple probe
- Three AAA 1.5V batteries
- One storage bag
- One user manual
Dimensions
|
Product Depth (in.) |
8.5 in |
Product Height (in.) |
1.7 in |
|---|---|---|---|
|
Product Width (in.) |
2.8 in |
Details
|
Accuracy Measurement |
True-RMS |
Category Rating |
IV |
|---|---|---|---|
|
Features |
Backlit, Data Logging |
Functions Measured |
Amperage, Capacitance, Continuity, Diodes, Frequency, Polarity, Resistance, Voltage |
|
Included |
Batteries, Case |
Maximum AC Current (A) |
40 |
|
Maximum AC Voltage |
400 |
Maximum DC Current (A) |
40 |
|
Maximum DC Voltage |
400 |
Maximum Frequency (MHz) |
4 |
|
Maximum Resistance (ohms) |
Not Measured |
Number of Functions |
18 |
|
Power Source |
Battery Operated |
Product Weight (lb.) |
0.56 lb |
|
Range |
Auto Ranging |
Returnable |
30-Day |
